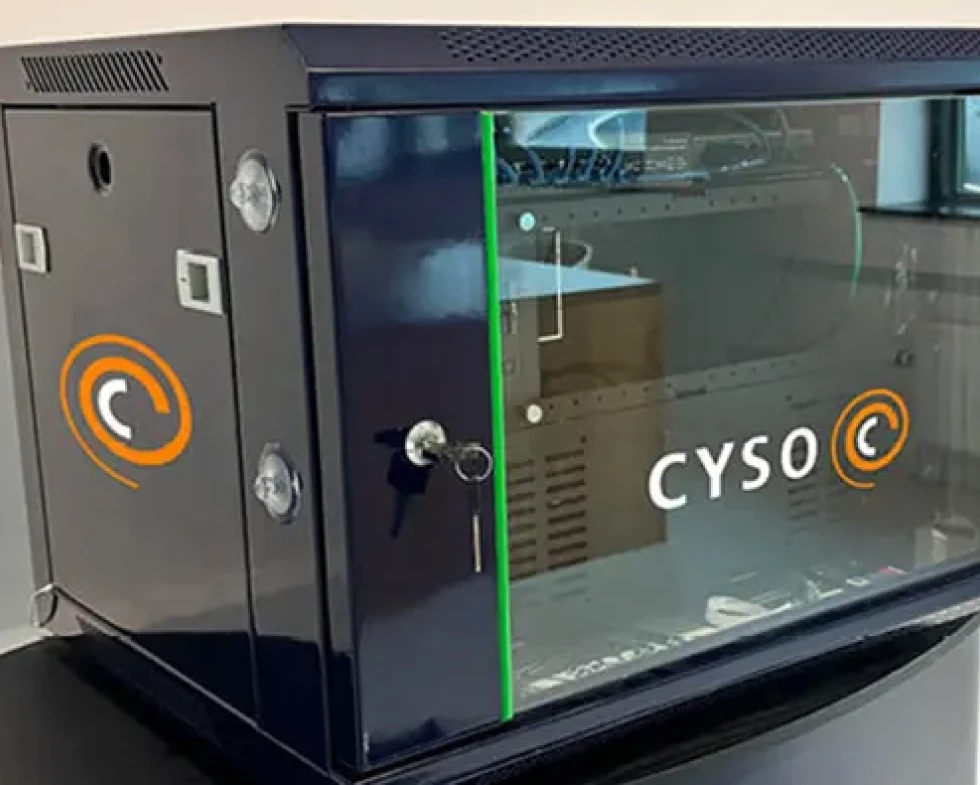

The Cysotron

WHAT IS IT?

Okay, admit it… you just couldn’t resist those lights.
We know, we understand, that’s the magic of our Cysotron.
Our Cloud in a Box (of the size of a microwave, Magnetron in Dutch, hence the ‘tron’).

Check Product Catalog Register to Cyso Cloud
Portable Cloud - Cysotron

Cysotron

Provides

• OpenStack virtualization platform
• HA object store
• Fuga EMK on premises

Virtualization

512 virtual cores
512 GB memory (80% usable)
5T of n+2 storage, 250K iops, up to 250 MB/sec (single 2.5 Gbit) of 1 GB/sec through 10 Gbit/sec uplink
Example: 100 VM’s with 2 CPU’s + 4 GB memory

Object store

5T of object storage (shared with OpenStack/RBD volumes)

Specs

Compute

• 8 nucs (NUC11TNKi5 )
• Intel Core i5-1135G7 4200 MHz (quad core with HT)
• 64 GB memory
• 256 GB boot SSD
• 2T nvme stroage
• 2.5 Gbit networking

Power usage

• Full load ~ 500 Watts
• Normal operation ~133 Watts, all-in

Peripherals

• Mikrotik router for VPN, routing, provisioning
• Raspberry Pi (netboot images) there had to be one…
• 8 port 2.5 Gbit switch with 2x 10 Gbit uplink, 1 free
• optional WiFi access point
