EMK - Restrict Access To Kubernetes API

Estimated time to read: 1 minute

Access to the Kubernetes API endpoint can be restricted using an allow-list mechanism. Your cluster can be configured to only accept requests from predefined IP addresses and networks, blocking unsolicited requests.

Configure Access Limit

Find your cluster in the Cyso Cloud Dashboard and open the cluster details page. In the Extensions block, click the edit (pencil) button next to API Server IP Access Control.

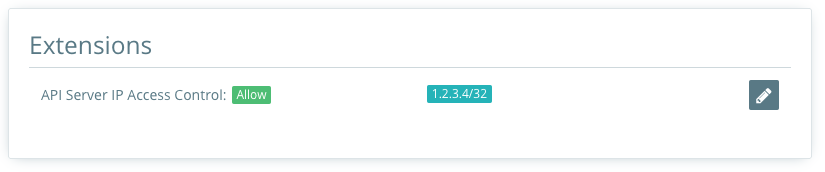

EMK cluster extensions

In the edit dialog, choose the action (Allow or Deny) and manage the list of CIDRs.

Example configuration, allowing remote clients from network 1.2.3.0/24 and address 4.5.6.7/32:

kind: Shoot
spec:
  extensions:
  - type: acl
    providerConfig:
      rule:
        action: ALLOW
        type: remote_ip
        cidrs:
          - "1.2.3.0/24"
          - "4.5.6.7/32"

Additional CIDRs are added to allow internal infrastructure to access the Kubernetes API.

Configurations

The following options are available:

  • The providerConfig.rule.action field is the action to either allow or deny
  • The providerConfig.rule.cidrs field is a list of IP addresses in CIDR notation (min: 1, max: 50)

After saving the updated YAML configuration, the cluster will reconcile and apply the settings automatically.
